Description

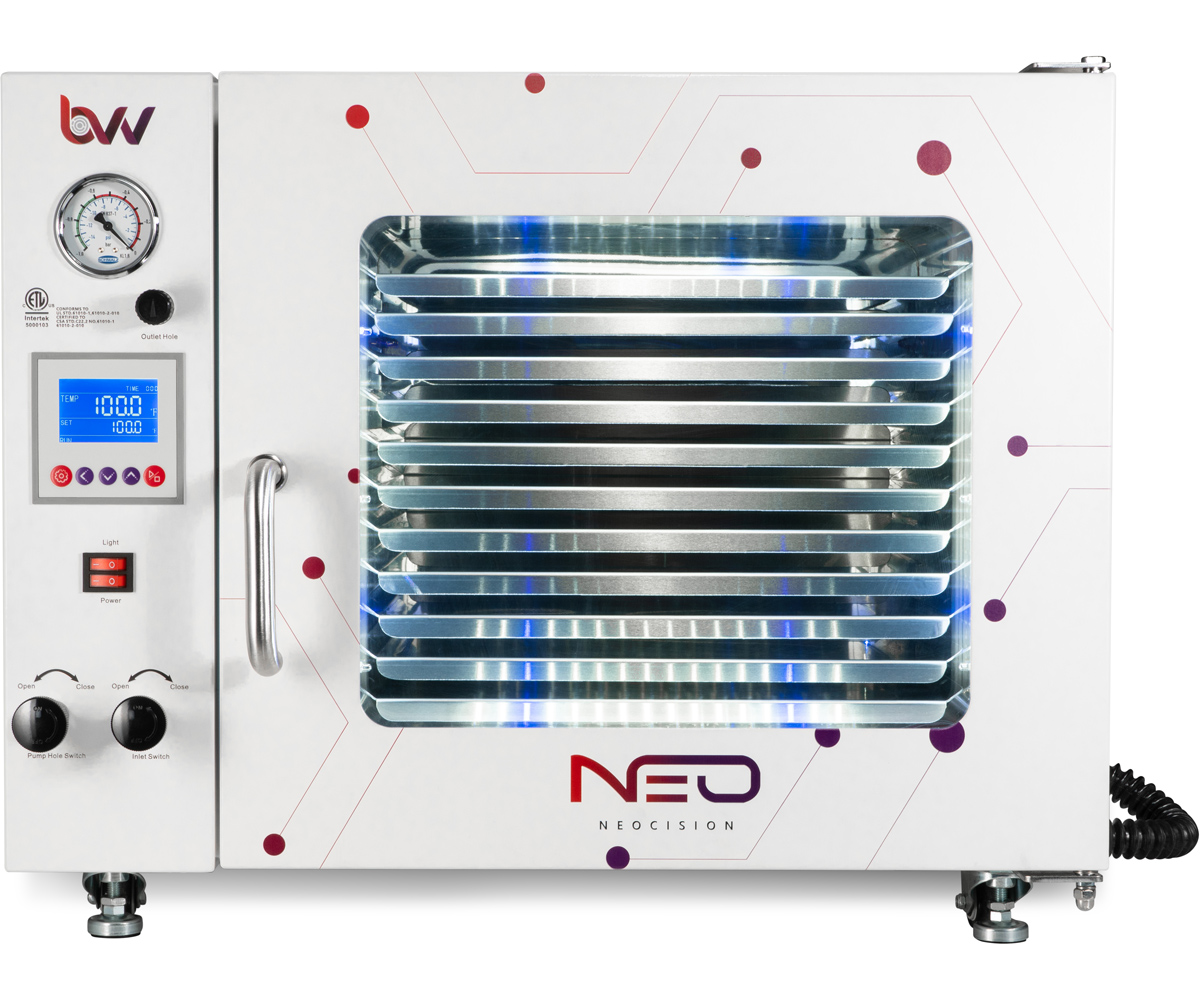

1.9 cu ft Neocision Lab Certified Vacuum Oven
Best Value Vacs vacuum ovens are purpose-built to perform degassing / purging of light hydrocarbon solvents. Using the technique of cold boiling, the oven applies a gentle heat under reduced pressure conditions to expedite solvent degassing while simultaneously preserving color, aroma, and overall solute quality. BVV has applied their extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-throughput, and reliable operation.
Features:
• 1.9cf interior space
• 5 wall heating
• 11 removeable shelves
• LED lighting in door
• Digital display
• Automatic overtemperature shutoff
• Built-in resettable circuit breaker
• Heavy duty casters with adjustable leveling feet
• ETL Certified
Benefits:
• Removes residual solvent to low ppm
• Even, efficient heating across multiple shelves
• Allows purging of multiple runs of the extractor
Includes:
• 1.9 cu ft vacuum oven
• KF-25 to ¼” JIC adapter with clamp
• ¼” HVAC hose
Technical Specs:
• Dimensions: 28.5” Width, 22” Depth, 23” Height
• Weight: 160 lbs
• Voltage: 120V
• Frequency: 60Hz
• Power: 650W
• Current: 10A
• Vacuum Range: -1 – 0 bar/-14.5 – 0 psi
• Operating Temperature Range: RT + 18 °F – 212°F
• 304 Stainless Steel Interior Chamber
• Temperature Stability: ±1.0°F
• Temperature Uniformity: within 7% of temperature setpoint
• Heat-Up Time: 45 minutes to preheat. Optimal saturation in 120 minutes, over 30 minutes faster than competitors.
• Ultimate Vacuum: <500 µmHg / mTorr / micron
• Time to Vacuum: 4 minutes to -1 bar using 4cfm 2-stage vacuum pump
• Shelf Capacity: 195 in2
